In this example, we'll look for a low power, 100 ohm, 5%, 1/4 W, leaded resistor, using the Part Number, that was generated by this utility.
Enter "ERE0101JB" in the Search field, then either press the "Return" key, or click the "Find" button next to it..

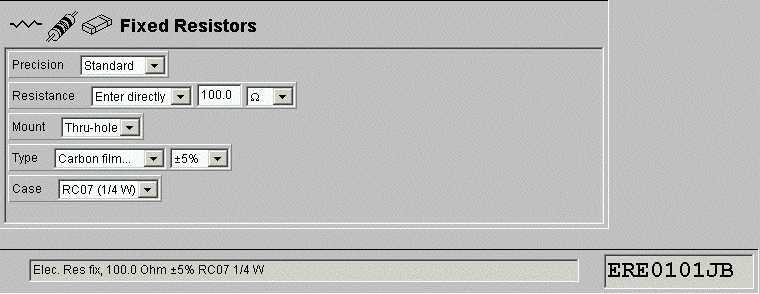

We have selected the low-power resistor class.
The tools in the Class panel are preset for the specific characteristics of such a resistor.
|
|
|
|
 |
